Dual technology volumetric motion detector
RANGE : Volumetric sensor, 15x15m, 38x6m
RELIABILITY : No dead zone, complementary technologies
DOUBT REMOVAL : Association with video system
Prinzip

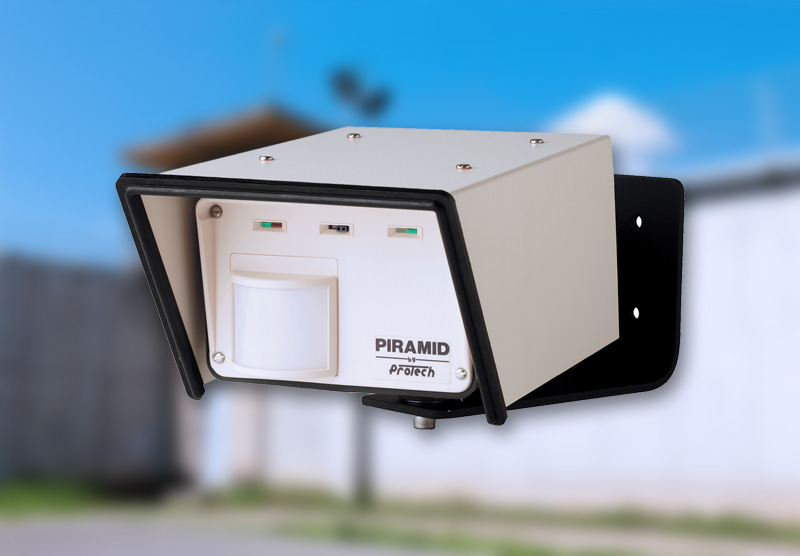

PIRAMID XL2 is a dual technology volumetric intrusion detector which integrates a high-frequency proprietary technology (Doppler stereo) and passive infrared.
These two technologies of the detector must be enabled simultaneously to generate an alarm. A proprietary integrated circuit offers advanced signal processing for each of the two technologies, thus offering immunity against disturbances caused by birds and small animals.
PIRAMID XL2 detectors are unique in this respect; they offer a reliable volumetric protection, even in extremely difficult environmental conditions.

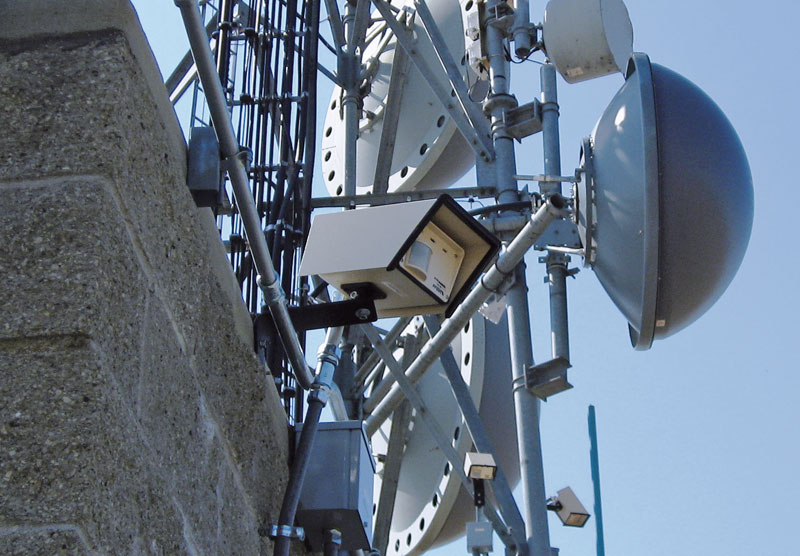

PIRAMID XL2 detectors can be used in various environmental conditions: bridges, ladders, waterfront platforms, etc. to protect property or strategic sites: industrial sites, military bases, private villas, etc.
Admissible voltages | 8.5 to 20 Vcc |
Verbrauch | 150 mA under 12 Vcc (LED OFF) |
Stromzufuhr density | 120 µW/cm² maximum in front of the device |
Operating temperature | -35°C to +70°C |
Relative humidity | 0 to 100% |
Relay contact capacity | 0,1 A / 50 V |
Housing dimensions (mm) | 158,75 (L) x 133,35 (l) x 88,90 (H) |
Cap dimensions (mm) | 234,95 (L) x 152,40 (l) x 107,95 (H) |
Factory setting frequency | 10,587 GHz / 9,90 GHz / 9,47 GHz |
- Das Gerät nicht auf einem Untergrund installieren, der starken Vibrationen ausgesetzt ist. Installation an einer Wand oder auf einem soliden Mast. Bei Befestigung auf einem Gebäude mit Metalluntergrund muss ein vibrationsbeständiger Halter verwendet werden.
- Richten Sie den Detektor nach unten aus, so dass die Deckung in der gewünschten Schutzzone bis zum Boden reicht. Bedenken Sie, dass das Gerät ein großes Objekt wie einen LKW oder Bus in einer Entfernung von ca. 150 m erkennen kann.
- Nicht unter einem Dachvorsprung ohne Dachrinne installieren. Bei schweren Regenfällen kann das Wasser direkt vor dem Gerät Störungsalarm auslösen.
The dual-technology detectors associate a passive infrared (PIR) sensor with a microwave sensor with Doppler effect. SORHEA has associated these two technologies to develop reliable detection solutions.
Infrared detection is based on an analysis of the temperature transmitted in the surveillance area. An intruder has a body temperature that sharply contrasts with the rest of the environment. Die HF-Antenne besteht aus einem 24 GHz-Sender (K-Band) und einem Doppler-Empfänger, die Signalveränderungen durch ein bewegliches Objekt im Erfassungskegel verursachen. Die Verbindung dieser zwei Technologien bietet eine zuverlässige und leistungsstarke Lösung durch eine immaterielle Schutzwand oder einen immateriellen Schutzkegel (je nach Sensormodell).
If each technology may turn out to be sensitive to certain disturbances (PIR sensitivity to heat reflection, and Doppler sensitivity to water movements), a combination of both technologies becomes efficient since the advantages of each technology cancel the weaknesses of the other one. To trigger an alarm, both two technologies must detect an intrusion.
