MAXIBUS UNIVERSAL

visuel-Maxibus

Documentation

Alarm information hub

Management up to 800 alarm points
Integration with the main VMS on the market: Genetec, Seetec,Milestone, etc cards
Secure transmission of data
Remote monitoring: event log with date and time, real-time display of detectors, setting parameters via web server
136 alarm relays: 8 relays + can be expanded with up to 16 expansion cards of 8 relays each

Principle

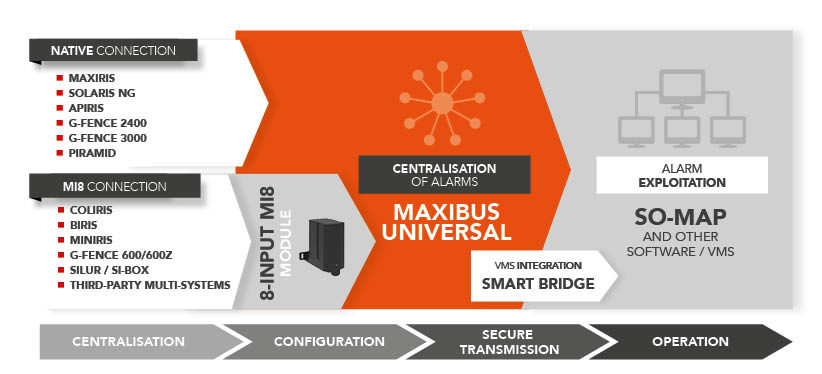

MAXIBUS centralises the alarm contacts of various networked SORHEA devices in a single location. It has remote maintenance and programming functions.

schema MAXIBUS_EN

Technical characteristics

Power supply	Power supply 12 Vdc
Consumption without alarm	Consumption without alarm 230mA without relay extension card (1,5 A with136 relays max.)
Connection	Connection Ethernet RJ45, 10/100 Base-T
Field BUS	Field BUS 4 RS485 outputs under the MODBUS protocol
Alarm outputs	Alarm outputs From 8 to136 output relays with the addition of a 8-relay extension card
Housing dimensions (mm)	Housing dimensions (mm) 253 x 313 x 115
Working temperature	From 0° C to +55° C
OPTIONS
Extension card	8 relays, up to 16 cards
MODULE Connect	Connects the intrusion detectors to the MAXIBUS UNIVERSEL concentrator via a secured dynamic
