MAXIBUS-NEO
Alarm information hub with video analysis
Secure data transmission of data: Cybersecurity
New detection technology added: Video analysis

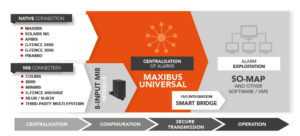

Centralisation of all alarm information to a single point, vianetworking: SORHEA products and third-party products
Integration with the main VMS on the market: Genetec, Seetec,Milestone, etc cards
Principle
The MAXIBUS allows you to centralize the alarm contacts of different SORHEA products in 1 single point, thanks to their networking. It has maintenance and remote programming functions.
| Power supply | Power supply 12 Vdc |
| Consumption without alarm | Consumption without alarm 230mA without relay extension card (1,5 A with136 relays max.) |
| Connection | Connection Ethernet RJ45, 10/100 Base-T |
| Field BUS | Field BUS 4 RS485 outputs under the MODBUS protocol |
| Alarm outputs | Alarm outputs From 8 to136 output relays with the addition of a 8-relay extension card |
| Housing dimensions (mm) | Housing dimensions (mm) 253 x 313 x 115 |
| Working temperature | From 0° C to +55° C |
| OPTIONS | |
| Extension card | 8 relays, up to 16 cards |
| MODULE Connect | Connects the intrusion detectors to the MAXIBUS-NEO hub via a secured dynamic |
